Made by experts, GasMix™ has its dedicated, user-friendly and fully redesigned software. Easy to handle, the software controls the operation of the system, calculates the flow, handles the calibration tables (automatic calculation of correction factor), communicates with an analyser, and much more.
Users can easily automate the process by synchronizing dilutions, injection, flushing timings with an external analyser, like gas chromatograph, pre-concentrator, spectrometer, gas analyser or other system and store it in a pre-programmed sequence.

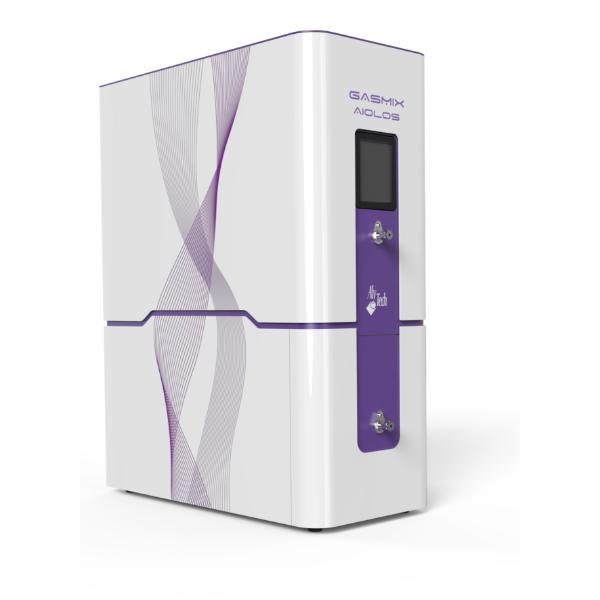

AlyTech GasMix™ AIOLOS III
The Intelligent Mixer & Diluter
To address the ever-growing analytical request, save money and gain in flexibility, many laboratories use the AIOLOS dynamic gas mixer from AlyTech – to perform multipoint calibration, linearity checks, LOQ/LOD validation.
AIOLOS III is the latest generation of this popular model in the GasMix™ family designed and produced by AlyTech for over 15 years. By mixing and/or diluting 2 to 6 gases the system generates calibration gas on site at the desired concentration with low uncertainty even at ppb levels.
High accuracy and reproducibility of the prepared gas standards make AIOLOS III an accomplished instrument, well accepted by users concerned with metrological performances. GasMix™ are unique diluters on the market capable to deliver a certificate for the produced concentration. The GasMix™ provides an automated, cost-effective way of on-site gas preparation and helps in the management of the following:
• Reduce the gas consumption
• Prepare and inject mixtures in an accurate and repeatable manner
• Reduce the number of necessary gas standards
• Reduce operator bench time
• Work with a wide range of mixtures and concentrations
AlyTech GasMix Application Form
Description
Dedicated Software
Made by experts, GasMix™ has its dedicated, user-friendly and fully redesigned software. Easy to handle, the software controls the operation of the system, calculates the flow, handles the calibration tables (automatic calculation of correction factor), communicates with an analyser, and much more.
Users can easily automate the process by synchronizing dilutions, injection, flushing timings with an external analyser, like gas chromatograph, pre-concentrator, spectrometer, gas analyser or other system and store it in a pre-programmed sequence.
Metrology
Every individual Mass Flow Controller (MFC) used in GasMix™ instrument undergoes a rigorous factory calibration procedure with 20 set points across the whole range ensuring highest accuracy and linearity with particular attention to low and high end. The procedure is repeated for every gas matrix of the customers choice (He, Ar, CH4, H2, N2, Air, …). Multipoint calibration tables for every gas are stored in the software and applied automatically for selected gas in use.
Following highest metrology requirements, the instrument not only accurately prepares the gas mixtures, but it also automatically calculates and reports maximum relative uncertainty for each delivered concentration.
The Audit Trail function performs complete traceability of the operations carried out.
Typical Applications
analysers, Spectrometers
Benefits of using GasMix™
to have a complete quality follow-up.
Technical Specifications
Please contact us for more information or to book a demo, also please download our product brochures and application notes or visit the www.gasmix.com
Additional information
AlyTech
Biofuels, Energy – Oil, Gas and Petrochemicals, Environmental, Food, Flavour and Beverage, Forensics, Fragrance and Essential Oils, Pharamceuticals and Life Science, Recycling – Fuels from Waste
Gas and Liquid Calibration, Gas Chromatography, Gas Testing
Brochure
AlyTech GasMix™ AIOLOS III Product Brochure

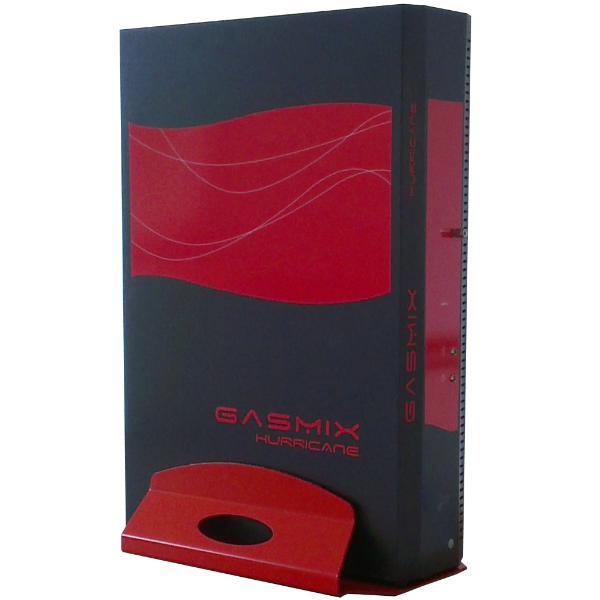

AlyTech GasMix™ HURRICANE Product Brochure
AlyTech GasMix™ General Overview
Video
Application notes
Application note – GasMix 06-03 – Multipoint calibration
Application note – GasMix 06-04 – Automated injections
Application note – GasMix 06-05 – Automated dilutions
Application note – GasMix 11-02 – Automatic GC calibration
Application note – GasMix 16-02 – LPG
Application note – GasMix – ENSAM Generation of controlled atmosphere
Application note – GasMix – Return on investment
GasMix Application Questionnaire
