Rapid sulphur measurement plus 12 elements from P to Zn
Petra MAX delivers D4294 sulphur analysis in addition to 12 elements from P to Zn, for rapid monitoring of critical elements like Ca, Fe, K, Ni, and V at sub-ppm levels. Petra MAX offers advanced precision with EDXRF, advanced reliability, and advanced software and data management. Petroleum laboratories depend on reliable, robust analytical solutions for their fast-paced environment. Petra MAX was designed to meet these needs with an innovative sample introduction system that directs accidental spills to a drip tray and away from valuable components.
The optional Petra MAX Autosampler offers a more efficient workflow with sample tracking and continuous sample loading. Users can eliminate data errors and add urgent samples to the queue as needed. Users have the option to use X-ID Sample Cups (QR-coded) or standard XRF cups.
The Petra MAX complies with ASTM D8252 for Vanadium and Nickel in Crude and Residual Oil also ASTM D4294, ISO 8754, and IP 336 for sulphur analysis of hydrocarbons like crude oil, diesel, gasoline, jet fuel, and lubricants. Delivering precise sulphur analysis with limits of detection as low as 5.7 ppm.
Advanced Software and Data Management
The Petra series offers the latest software features and data management for simple, intuitive operation
New software allows the Petra series to store 30 calibration data sets and offers both linear and quadratic curves
Data management is easy with storage for thousands of measurements, data transfer over USB and LIMS integration
An optional continuous feed autosampler is available
For more information please download our products catalogues or visit Petra 4924 or Petra Max
Additional information
Manufacturer
XOS
Industry
Biofuels, Energy – Oil, Gas and Petrochemicals, Marine, Recycling – Fuels from Waste

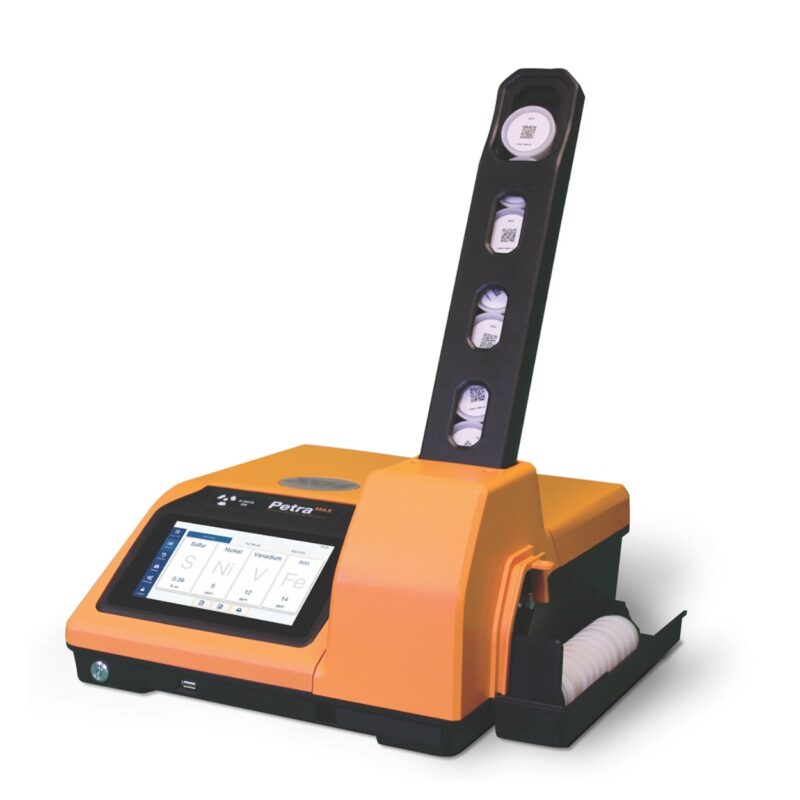

XOS Petra Max Multi-element EDXRF Analyzer
Rapid sulphur measurement plus 12 elements from P to Zn
Petra MAX delivers D4294 sulphur analysis in addition to 12 elements from P to Zn, for rapid monitoring of critical elements like Ca, Fe, K, Ni, and V at sub-ppm levels. Petra MAX offers advanced precision with EDXRF, advanced reliability, and advanced software and data management. Petroleum laboratories depend on reliable, robust analytical solutions for their fast-paced environment. Petra MAX was designed to meet these needs with an innovative sample introduction system that directs accidental spills to a drip tray and away from valuable components.
The optional Petra MAX Autosampler offers a more efficient workflow with sample tracking and continuous sample loading. Users can eliminate data errors and add urgent samples to the queue as needed. Users have the option to use X-ID Sample Cups (QR-coded) or standard XRF cups.
Description
Advanced Precision
The Petra MAX complies with ASTM D8252 for Vanadium and Nickel in Crude and Residual Oil also ASTM D4294, ISO 8754, and IP 336 for sulphur analysis of hydrocarbons like crude oil, diesel, gasoline, jet fuel, and lubricants. Delivering precise sulphur analysis with limits of detection as low as 5.7 ppm.
Advanced Software and Data Management
For more information please download our products catalogues or visit Petra 4924 or Petra Max
Additional information
XOS
Biofuels, Energy – Oil, Gas and Petrochemicals, Marine, Recycling – Fuels from Waste
X-ray Fluorescence Spectroscopy
Brochure
XOS Petra series product brochure
XOS Sulphur Family Product Brochure
XOS XRF Family Product Brochure
Video
Application Notes
Understanding X-Ray Fluorescence and FP Calibration
Total Sulphur in Hydrocarbons by ASTM D4294
S, Ni, V, and Fe Analysis of Crude Oil Using HDXRF Petra MAX
Petra (Max) Eliminate Centrifuge for Sulphur in Crude Oil Analysis
Petra (Max) Auto Matrix Correction
Marine Sulphur in Bunker fuel
Fast and Precise Elemental Screening in Petroleum Coke and Coal
Avoid Sulphur Measurement Bias from Particulate Settling in Crude Oil
White Papers
ASTM Crude Oil Proficiency Testing Program – ICP D5708B vs XRF D8252 for Ni and V
